Product Details:
|
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, Medical | Packaging Type: | CANS, Bags, Film |
|---|---|---|---|
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3000mm*2000mm*2650-3650mm | Weight: | 1000kgs |
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Core Components: | Other |

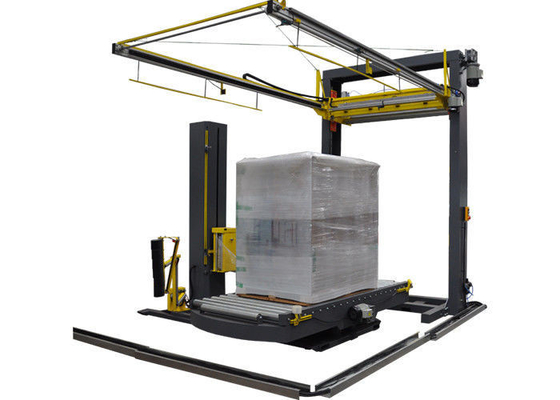

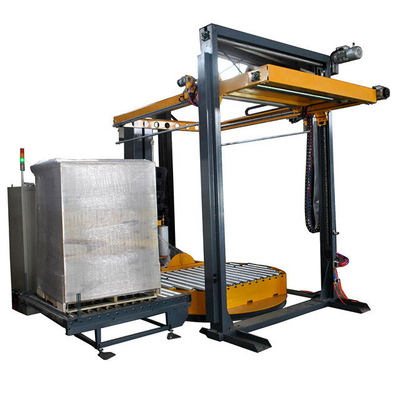

| Product Name: | Automatic Pallet Packing Machine Machine With Top Sheet | Type: | Wrapping Machine |
| Applicable Industries: | Building Material Shops, Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Port,packing Machine |
Wrapping size | 500-1100mm(L)*500-1100mm(W) |
Packaging height | 1800mm-2800mm available |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-15RPM (adjustable, soft start&stop) |
Bearing | Max. 2000kgs |
Turntable size | D=2000mm, H from 400mm |
Film carriage | Driven pre-stretch carriage, stretch ratio up to 300%. Auto film feeding, cutting and pressing |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 1000kgs |
Dimension | 3000mm*2000mm*2650-3650mm |
Power | Turntable 1.1kw; Film carriage 0.37kw; Tower 0.37kw; conveyor 0.55kw 380V 50HZ 3Phase |
