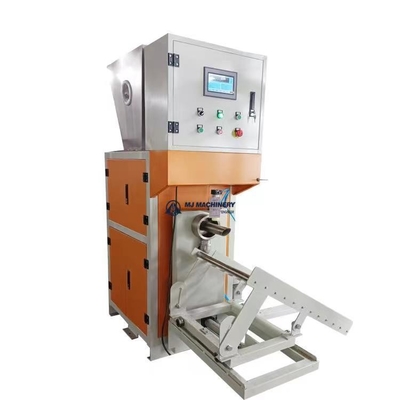

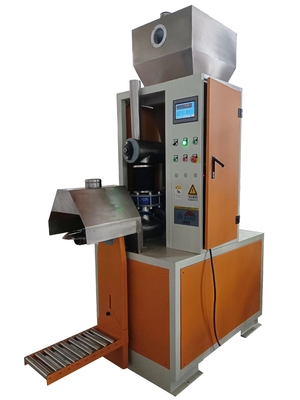

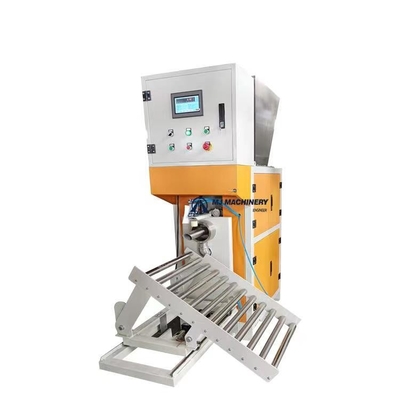

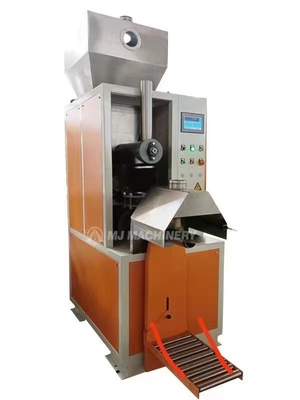

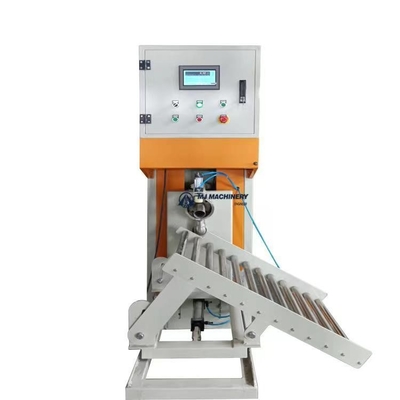

Electric Driven Type Valve Port Powder Filling Packaging Machine

Electric Driven Type Valve Port Powder Filling Packaging Machine
Electric Driven Type Valve Port Powder Filling Packaging Machine Electric Driven Type Valve Port Powder Filling Packaging Machine Electric Driven Type Valve Port Powder Filling Packaging Machine Electric Driven Type Valve Port Powder Filling Packaging Machine Electric Driven Type Valve Port Powder Filling Packaging Machine Electric Driven Type Valve Port Powder Filling Packaging Machine

Large Image :  Electric Driven Type Valve Port Powder Filling Packaging Machine

Product Details:
Place of Origin: China
Brand Name: M&J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets >=1 sets
Contact Now

Electric Driven Type Valve Port Powder Filling Packaging Machine

Description
Machinery Capacity: 400BPH, 100BPH, 200BPH Application: Chemical, Flour,starch,cocoa Powder,corn Starch,soybean Flour
Packaging Type: Stand-up Pouch, Bags, Kraft Valve Bag, Valve Sacks, Valve Mouth, Valve Spout Packaging Material: Wood
Automatic Grade: Semi-automatic Driven Type: Electric
Voltage: 220-415V Dimension(L*W*H): 1*1*2.2m
Weight: 350 KG Warranty: 1YEAR
Key Selling Points: High-accuracy Filling Material: Other, Powder
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Core Components: Pump, Other, PLC, Bearing, Engine Packaging Range: 1kg To 5kg, 2kg, 25kg To 50 Kg, 5kg-50kg,10kg, 10-20kg,25 To 50 Kilos
Marketing Type: Ordinary Product Type: Filling Machine
Applicable Industries: Manufacturing Plant Showroom Location: None
Condition: New Warranty Of Core Components: 1 Year

Electric Driven Type Valve Port Powder Filling Packaging Machine 0
PRODUCTS DESCRIPTION
Model
LCS
LCS-Y
LCS-Y2
Weighing Range
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions
±0.2%FS
Packing Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power supply
220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)
3.2
4
6.6
Dimension (LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570
The size can be customized according to your site.
Weight
700kg
800kg
1000kg
Structure:  The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
Electric Driven Type Valve Port Powder Filling Packaging Machine 1
Electric Driven Type Valve Port Powder Filling Packaging Machine 2
Electric Driven Type Valve Port Powder Filling Packaging Machine 3
Electric Driven Type Valve Port Powder Filling Packaging Machine 4
RELATED PRODUSTS
PROJECT DISPLAY
Electric Driven Type Valve Port Powder Filling Packaging Machine 5
COMPANY PROFILE
Electric Driven Type Valve Port Powder Filling Packaging Machine 6
M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.
Electric Driven Type Valve Port Powder Filling Packaging Machine 7
CERTIFICATIONS
Electric Driven Type Valve Port Powder Filling Packaging Machine 8
WHY CHOOSE US
Electric Driven Type Valve Port Powder Filling Packaging Machine 9
Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.
We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
COOPERATIVE CLIENT
Electric Driven Type Valve Port Powder Filling Packaging Machine 10
Electric Driven Type Valve Port Powder Filling Packaging Machine 11
Electric Driven Type Valve Port Powder Filling Packaging Machine 12
FAQ
Electric Driven Type Valve Port Powder Filling Packaging Machine 13
Electric Driven Type Valve Port Powder Filling Packaging Machine 14
