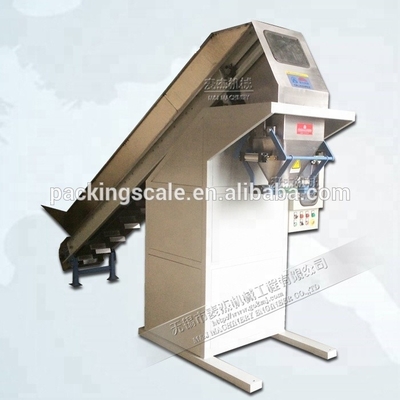

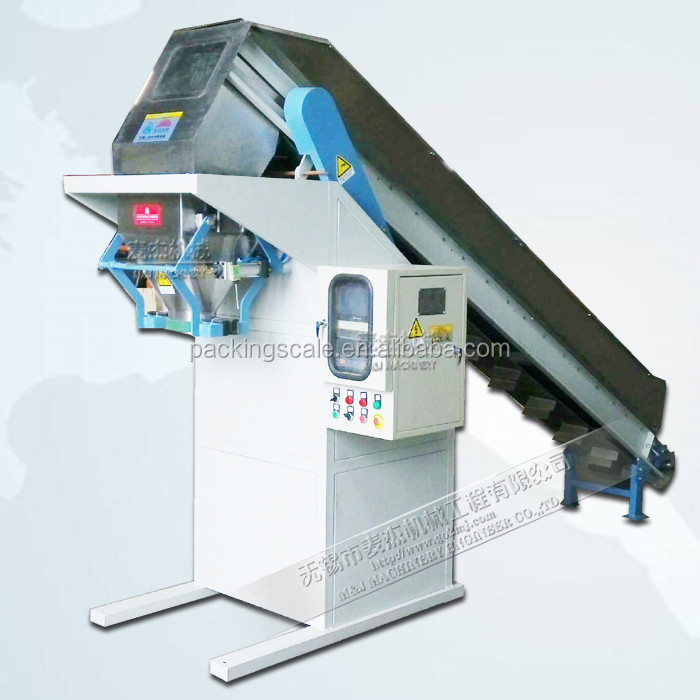

25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power

25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power

Large Image :  25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power

Product Details:
Place of Origin: China
Brand Name: MJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,000.00/sets >=1 sets
Contact Now

25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power

Description
Warranty: 1 Year Type: Other
Applicable Industries: Manufacturing Plant Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC
Condition: New Application: Briquette, Coal Ball,coconut Coal, Wood Coal
Packaging Type: Bags, Barrel, Cartons, Stand-up Pouch, CANS, , Kraft Bag,pp Woven Bag, Big Bag, Bulk Bag, Valve Sack Packaging Material: Wood
Automatic Grade: Semi-automatic Driven Type: Electric
Voltage: 110-480V Power: 2.2kw
Weight: 350 KG Dimension(L*W*H): 3*0.8*2.8m
Key Selling Points: Easy To Operate Product Name: Coal Packaging Machine

When the particle packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 0
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 1
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 2
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 3
PRODUCTS DESCRIPTION
Model
LCS
LCS-Y
LCS-Y2
Weighing Range
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions
±0.2%FS
Packing Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power supply
220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)
3.2
4
6.6
Dimension (LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570
The size can be customized according to your site.
Weight
700kg
800kg
1000kg
Model
LCS
LCS-Y
LCS-Y2
Weighing Range
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions
±0.2%FS
Packing Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power supply
220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)
3.2
4
6.6
Dimension (LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570
The size can be customized according to your site.
Weight
700kg
800kg
1000kg
Structure:  The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 4
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 5
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 6
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 7
RELATED PRODUSTS
PROJECT DISPLAY
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 8
COMPANY PROFILE
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 9
M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 10
CERTIFICATIONS
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 11
WHY CHOOSE US
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 12
Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.
We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
COOPERATIVE CLIENT
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 13
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 14
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 15
FAQ
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 16
25kg 50kg Coal Packaging Machine with User-friendly Controls and 2.2kw Power 17
