Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading

Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading

Large Image :  Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading

Product Details:
Place of Origin: China
Brand Name: M&J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,000.00/sets >=1 sets
Contact Now

Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading

Description
Application: Machinery & Hardware Packaging Type: Bags, Cartons, Pouch, Stand-up Pouch
Packaging Material: Wooden Carton Automatic Grade: Semi-automatic
Driven Type: Electric Voltage: 110-415V
Dimension(L*W*H): 3000*1000*3500mm Weight: 350 KG
Warranty: 1 Year Key Selling Points: High-accuracy
Filling Material: Powder Filling Accuracy: 0.2%
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Core Components: PLC Type: Filling Machine
Usage: Truck Loading Tube Function: Telescopic Truck
Name: Truck Loading Tube

Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 0
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 1
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 2

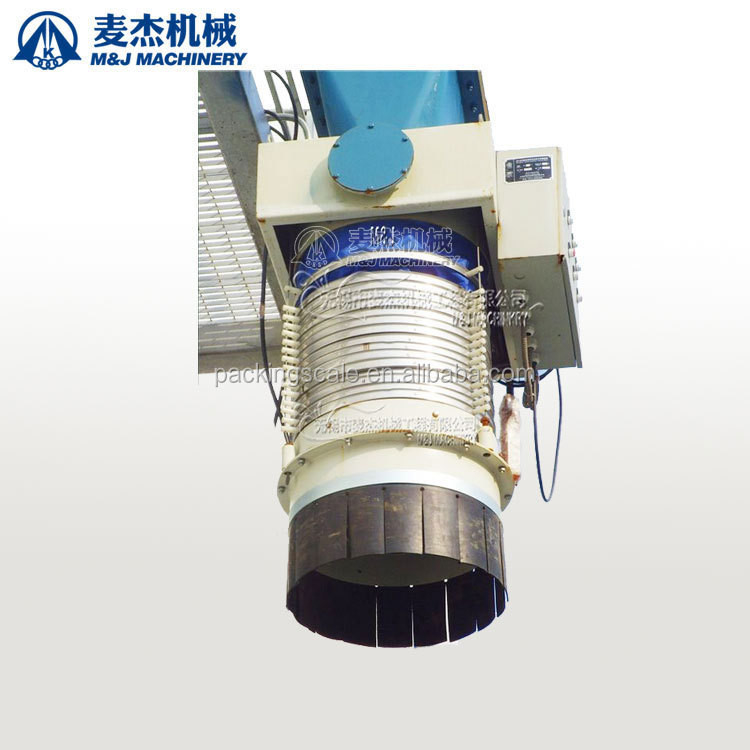

The telescopic chute adopts double casing structure, which is composed of chute and dust cover. The material passes through the chute, and the dust cover is covered on the chute. During the process, the dust suction chamber is moved. The bottom of dust-free telescopic chute will be provided with material level sensor and dust-proof group cover. The material level sensor will be set on the outside or inside, and the dust cover will be of block overlap type. In the loading process, after the material level sensor contacts the material, the dust-free telescopic chute will be lifted in time to keep a certain distance between the material top and the accumulated materials. The dust-proof group cover can cover the material pile to ensure the dust collection effect and prevent dust overflow. The chute will be made of steel plate with polyurethane wear-resistant lining plate, and the dust cover is made of chemical fiber material with anti-static soft strength. A supporting framework will be set in the dust cover, which can not only stretch up and down, but also ensure smooth air flow. At least three lifting points will be set at the bottom of the telescopic chute to ensure that the lifting mechanism drives the telescopic chute to rise and fall smoothly.
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 3
Product brand
M&Jmachinery
Range of ingredients
1-200KG
Batching speed
depends on the material and weight
Screw speed
40~85r/min
Helix diameter
Φ100~Φ400
Power supply
AC380V.50HZ
accuracy
0.2%
Working conditions
Temperature - 10 ~ 40 ℃, humidity: < 90%
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 4
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 5
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 6
Powder Filling Telescopic Tube for Electric Driven Container Loading and Unloading 7
