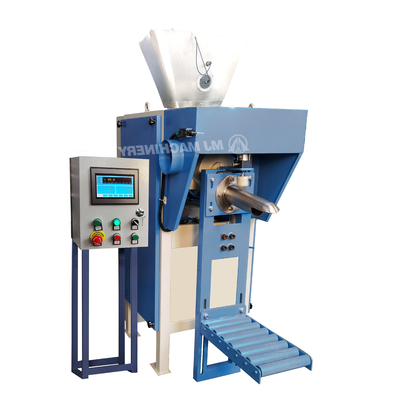

Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal

Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal

Large Image :  Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal

Product Details:
Place of Origin: China
Brand Name: M&J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,200.00/sets 1-4 sets
Contact Now

Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal

Description
Weight (KG): 400 Function: FILLING
Application: Food, Flour,starch,cocoa Powder,corn Starch,soybean Flour Packaging Type: Cartons, Stand-up Pouch, Bags, Pouch, Kraft Valve Bag, Valve Sacks, Valve Mouth, Valve Spout
Packaging Material: Wood Automatic Grade: Semi-automatic
Driven Type: Pneumatic Voltage: 220-415V
Dimension(L*W*H): 1*1*2.2m Warranty: 1 Yera
Key Selling Points: High-accuracy Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor, PLC, Engine
After-sales Service Provided: Video Technical Support, Free Spare Parts Product Name: 25kg Dry Mortar Packing Machine Filling Machine

Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 0
PRODUCTS DESCRIPTION
Model
LCS
LCS-Y
LCS-Y2
Weighing Range
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs


Precisions
±0.2%FS


Packing Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power supply
220V/380V, 50HZ, 1P/3P ( Customized)


Power (KW)
3.2
4
6.6
Dimension (LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570

The size can be customized according to your site.


Weight
700kg
800kg
1000kg
Structure:  The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 1
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 2
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 3
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 4
RELATED PRODUSTS

PROJECT DISPLAY
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 5
COMPANY PROFILE
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 6
M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 7
CERTIFICATIONS
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 8
WHY CHOOSE US
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 9
Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.
We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
COOPERATIVE CLIENT
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 10
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 11
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 12
FAQ
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 13
Pneumatic Driven 25kg Dry Mortar Powder Filling Machine for Form Fill Seal 14
