10kg 15kg 25kg Superfine Powder Packing Machine With Suction Function Function FILLING

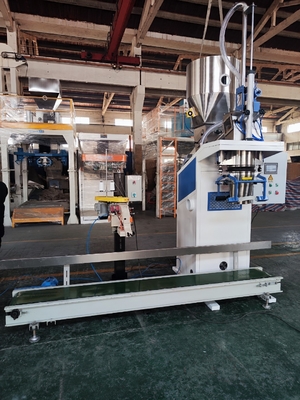

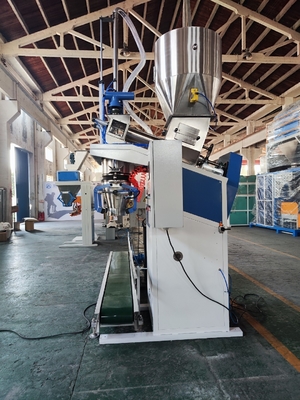

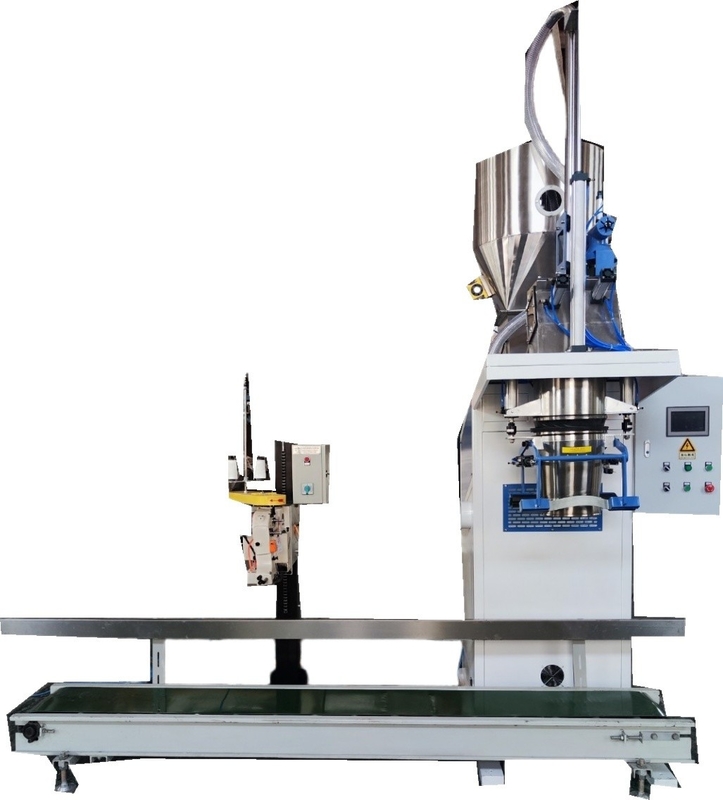

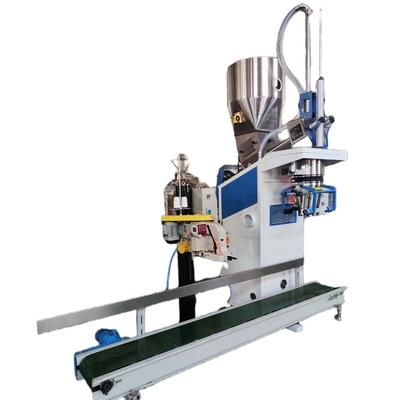

Large Image : 10kg 15kg 25kg Superfine Powder Packing Machine With Suction Function Function FILLING

Product Details:

Place of Origin:	China
Brand Name:	M&J

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,500.00/sets 1-4 sets

Contact Now

10kg 15kg 25kg Superfine Powder Packing Machine With Suction Function Function FILLING

Description

Weight (KG):	250	Function:	FILLING, Wrapping, Weighing And Packaging
Application:	Food, Commodity, Chemical, Machinery & Hardware	Packaging Type:	Stand-up Pouch, Bags, Film, Pouch
Packaging Material:	Plastic, Wood	Automatic Grade:	Semi-automatic
Driven Type:	Electric	Voltage:	220V
Dimension(LWH):	2100(L)X 900(W)X 1290(H)mm	Warranty:	1 Year
Key Selling Points:	Multifunctional	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Online Support	Product Name:	10kg Packing Machine
Main Function:	Weighting Filling Packaging Machine

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Inquiry Now!

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
