Product Details:
|
| Production Capacity: | 5bag/min | Function: | FILLING, SLITTING |
|---|---|---|---|
| Application: | Machinery & Hardware | Packaging Type: | Bags, Belt, Pouch |
| Packaging Material: | Wood | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220V/Customized |
| Dimension(L*W*H): | 3000*170*2800 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Not Available | Core Components: | PLC |
| After-sales Service Provided: | Video Technical Support, Online Support | Filling Weight: | 1kg To 5kg, 2kg, 25kg To 50kg, 5kg-50kg,10kg, 10-20kg,25 To 50 Kilos |
| Capacity: | 180-240bags/hour | Package Type: | Kraft Paper Bag, Paper Bag, Pe Sack,25 Kg Bag |
| Type: | Weighing Machine Auto Bagger, Multi-Function Packaging Machine | Applicable Industries: | Manufacturing Plant |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |

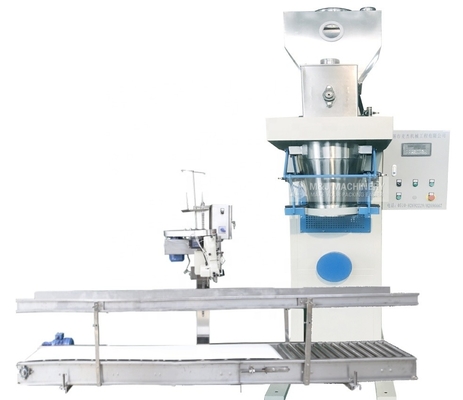

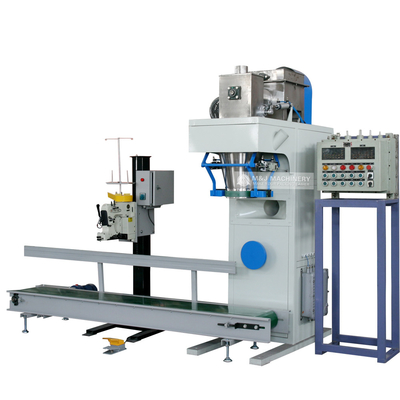

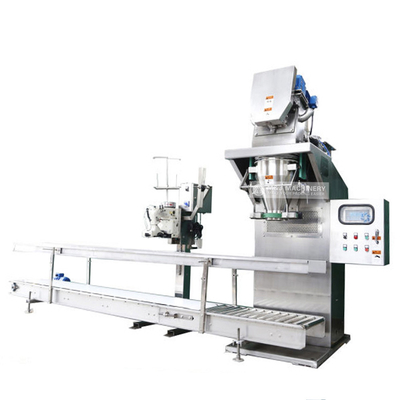

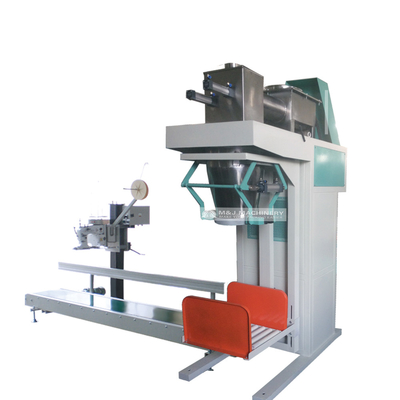

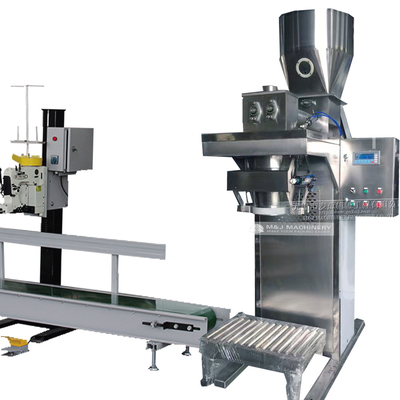

1-50kg flour powder packing machine, automatic powder weighing scale
automatic fill weigh system
adjustable weight high accuracy
CE&ISO9001
I. Application
1-50kg flour powder packing machine, automatic powder weighing scale This machine is especially designed for packing bagging machine for ammonium nitrate prills into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
II. Working Principle

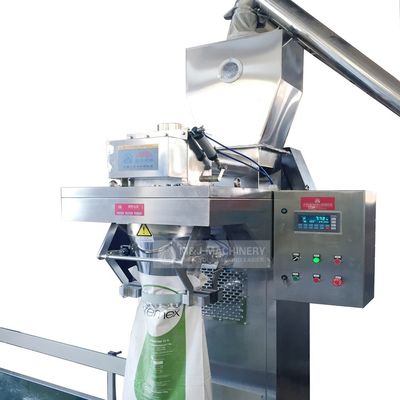

First, the bag need be applied manually to the filling spout and the filling process is started by a push-button.Your material will firstly go to the hopper and then be filled into the bags via the feeding parts. The filling flow is controlled by the frequency-change rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.
III. Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process
IV. Feature
Your benefits due to our experience:
u Clean bag filling
Due to product-specially chosen filling spout with all-side clamping jaws
u Space saving
Due to compact machine design
u Cost saving
Due to stable operation and low maintenance costs
u Easy handling
Due to easy and intuitive operational menu with “weight input” “weight display” “time display”
Due to our operator guidance, easy cleaning and maintenance
u High weight accuracy: ±0.2%FS
Due to coarse and fine flow filling controlled by one frequency-change screw’s (auger’s) rotating speed
Due to the use of the Canadian General Measure or METTLER TOLEDO weighing controller and OMISEO (USA) load cell sensors
u Nice bag sealing
Due to project-specially selected bag closure, e.g. sewing, welding or hot-melt sealing
And the Optional device:
Dust removal device. The working environment will be more hygienic if the dust removal device is added.
Technical Parameter:
|
Model |
LCS |
LCS-Y |
LCS-Y2 |
|
Weighing Range |
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs |
||
|
Precisions |
±0.2%FS |
||
|
Packing Capacity |
150-200bag/hour |
250-300bag/hour |
480-600bag/hour |
|
Power supply |
220V/380V, 50HZ, 1P/3P ( Customized) |
||
|
Power (KW) |
3.2 |
4 |
6.6 |
|
Dimension (LxWxH)mm |
3000x1050x2800 |
3000x1050x3400 |
4000x2200x4570 |
|
The size can be customized according to your site. |
|||
|
Weight |
700kg |
800kg |
1600kg |
|
|
|
|
|
We aim to best serve our clients’ needs. So we promise the following clauses on condition of establishing business relationship with you.
1) The machine shall be guaranteed by the seller against poor materials, poor performance and poor workmanship for a period of one year from the date of commissioning. During this guarantee period, the seller will provide the buyer with free maintenance and free spare parts that caused by the machine’s quality upon receipt of advice.
2) The seller will supply repair service for three years on condition that the buyer takes on all costs of the broken parts.
3) The seller will supply the buyer the guide service on the operation of the machine.
4) The seller will respond within 2 hours if the machine goes wrong in production.
5) If required, the seller will dispatch technician to buyer’s country for installation guide, commissioning & adjusting the machine and training the workers on condition that the buyer affords all the cost from China to the buyer’s company including food, accommodation, transportation, etc. and extra USD100.0 per day per person for the service.
