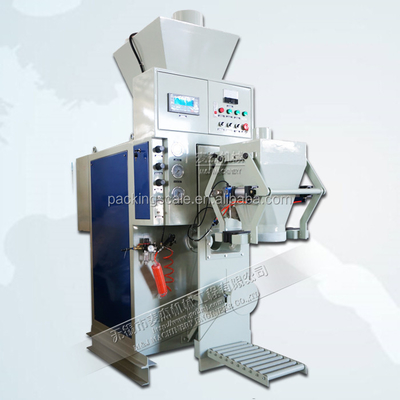

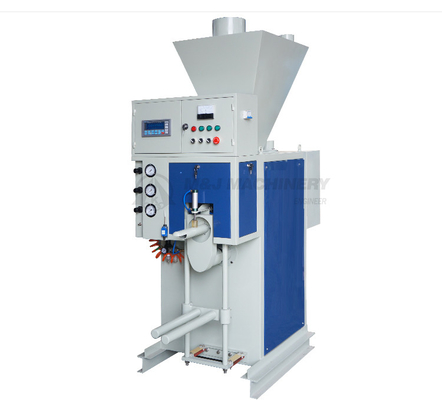

220-415V Voltage Wall Putty Packing Machine for 25kg Bentonite Powder in Valve Sack

Large Image : 220-415V Voltage Wall Putty Packing Machine for 25kg Bentonite Powder in Valve Sack

Product Details:

Place of Origin:	China
Brand Name:	MaiJie

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,800.00/sets >=1 sets

Contact Now

220-415V Voltage Wall Putty Packing Machine for 25kg Bentonite Powder in Valve Sack

Description

Weight (KG):	360	Function:	FILLING, Sealing
Application:	Chemical, Lime Powder, Kaolin, Ceramic Powder, Wall Putty, Stucco Powder, Wall Putty, Asphalt Powder, Organic Fertilizer	Packaging Type:	Bags, Barrel, Belt, Valve Bag, Kraft Bag, Woven Bag, Big Bag, Bulk Bag, Valve Sack
Packaging Material:	Wood	Automatic Grade:	Semi-automatic
Driven Type:	Pneumatic	Voltage:	220-415V
Dimension(LWH):	112.2m	Warranty:	1 Year
Key Selling Points:	High-accuracy	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	PLC
Type:	25kg Bentonite Powder Weight Packing Machine For Valve Bag	Main Function:	Packing Packaging Filling
Usage:	To Pack, Package, Fill, Weighing, Bagging, Sealing,switching, Sewing	Net Weight:	350kg 500kg
Condition:	New

PRODUCTS DESCRIPTION

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.

RELATED PRODUSTS

PROJECT DISPLAY

COMPANY PROFILE

M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.

CERTIFICATIONS

WHY CHOOSE US

Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.

We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.

We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.

COOPERATIVE CLIENT
