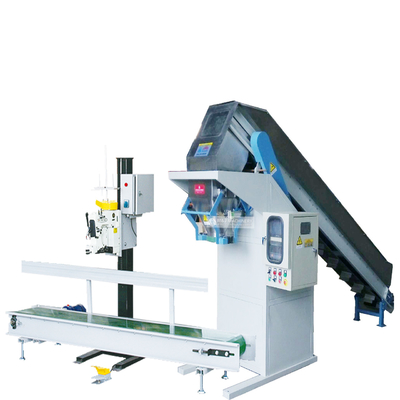

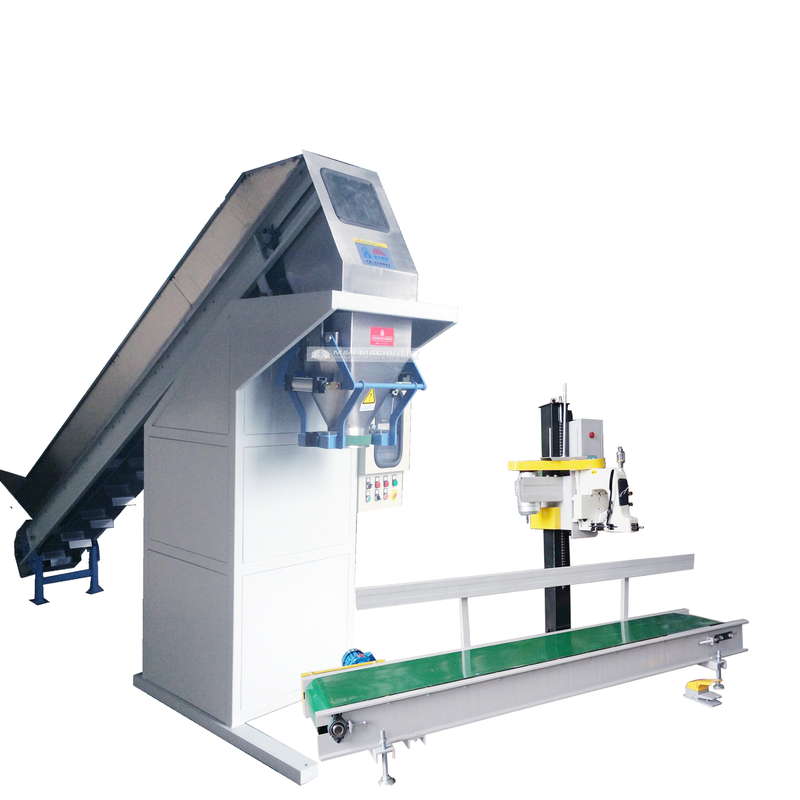

Semi-automatic Charcoal Packing Machine for Beans Fruits 500kg 110-440V

Large Image : Semi-automatic Charcoal Packing Machine for Beans Fruits 500kg 110-440V

Product Details:

Place of Origin:	China
Brand Name:	M&J
Certification:	CE, ISO9001-2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00 - $8,000.00/sets
Packaging Details:	PLYWOOD BOX bagging machine
Supply Ability:	90 Set/Sets per Month

Contact Now

Semi-automatic Charcoal Packing Machine for Beans Fruits 500kg 110-440V

Description

Warranty:	1 Year	Type:	Other
Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC
Condition:	New	Application:	Machinery & Hardware
Packaging Type:	Bags, Cartons, Pouch, Stand-up Pouch	Packaging Material:	Wood
Automatic Grade:	Semi-automatic	Driven Type:	Electric
Voltage:	110-440V	Power:	2.2kw
Weight:	500kg	Dimension(LWH):	313.6m
Key Selling Points:	Easy To Operate	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support
Usage:	In Production Line	Keyword:	Charcoal Packing Machine
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
Marketing Type:	New Product 2020	Port:	Shanghai

When the particle packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.

PRODUCTS DESCRIPTION

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
