User-friendly Packaging Multi-function 5-25kg Bags Filling Machine for Powder Perfect

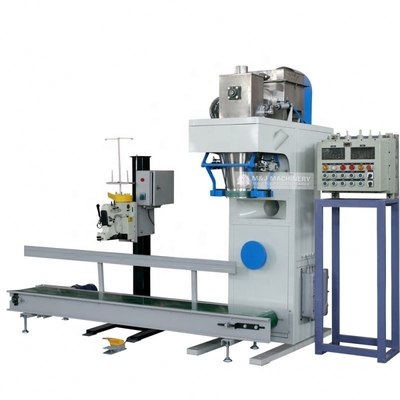

Large Image : User-friendly Packaging Multi-function 5-25kg Bags Filling Machine for Powder Perfect

Product Details:

Place of Origin:	China
Brand Name:	mj

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,800.00/sets >=1 sets

Contact Now

User-friendly Packaging Multi-function 5-25kg Bags Filling Machine for Powder Perfect

Description

Weight (KG):	650	Function:	FILLING, Sealing, SLITTING
Application:	Chemical, Food	Packaging Type:	Stand-up Pouch, Bags
Packaging Material:	Plastic, Paper	Automatic Grade:	Semi-automatic
Driven Type:	Electric	Voltage:	220V
Dimension(LWH):	70012002800mm	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Other, Motor
After-sales Service Provided:	Video Technical Support	Product Name:	Bags Filling Machines

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Inquiry Now!

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.

RELATED PRODUSTS

MJ was established in Wuxi(China) in 2000,specialized in the design and manufacturing of machinery for weighing,bagging and palletizing.Who has 20 years of experience and more than 3000 machines installed. It is currently the leading manufacturer in bagging technology. highly qualified and committed professionals, who are undergoing training. MJ´s activity is focused on studying and designing customized solutions for bagging and palletizing of bulk solids, powders or granulates,serving in Chemical,Food,Animal Feed, Construction and Mineral Industry,etc. Our company prides high-performance bagging machines and long-lasting turnkey installations.All the machines are designed to meet the different industrial technical standards, such as MID, CE.

MJ Machinery Engineering Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.
