Bottles Packaging Type Masala Powder Filling Machine for Food and Chemical Industries

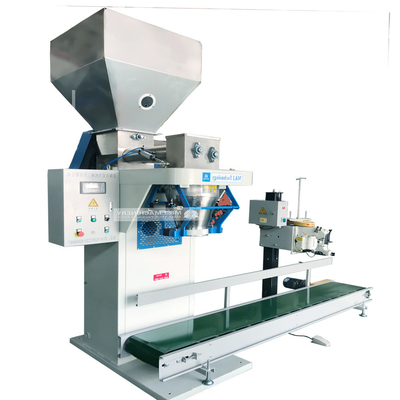

Large Image : Bottles Packaging Type Masala Powder Filling Machine for Food and Chemical Industries

Product Details:

Place of Origin:	China
Brand Name:	MJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,800.00/sets 1-2 sets

Contact Now

Bottles Packaging Type Masala Powder Filling Machine for Food and Chemical Industries

Description

Weight (KG):	420	Function:	FILLING, Wrapping, Labeling, Sealing, SLITTING, Counting
Application:	Food, Chemical	Packaging Type:	Bags, Film, Pouch, Bottles, Stand-up Pouch
Packaging Material:	Plastic, Paper, Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P 380V
Dimension(LWH):	1000x790x1800mm	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	PLC, Pump, Motor, Engine
After-sales Service Provided:	Video Technical Support, Online Support, Free Spare Parts	Product Name:	Automatic Powder Packing Machine

When the powder packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.

PRODUCTS DESCRIPTION

Model	LCS-LX	LCS-LX-Y	LCS-LX-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Structure: The unit consists of the ration automatic packing machine and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
